Ratiometric DAC

Monday, June 26th, 2006

Been trying to figure out how to drive a proportional valve that wants ratiometric input signal using a microcontroller. The valve in question would be PVG32 from Sauer-Danfoss.

Some circuits I’ve been sketching:

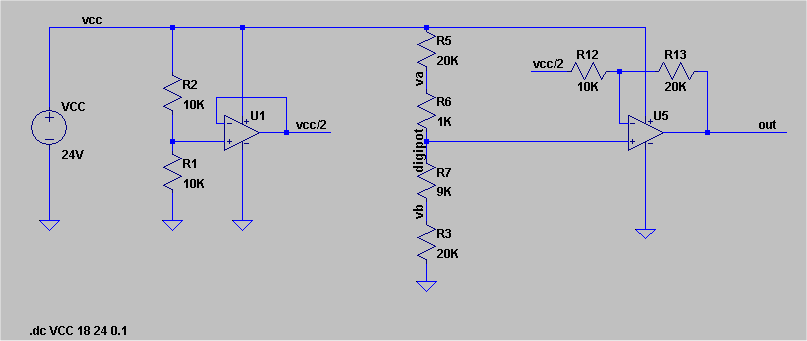

V1:

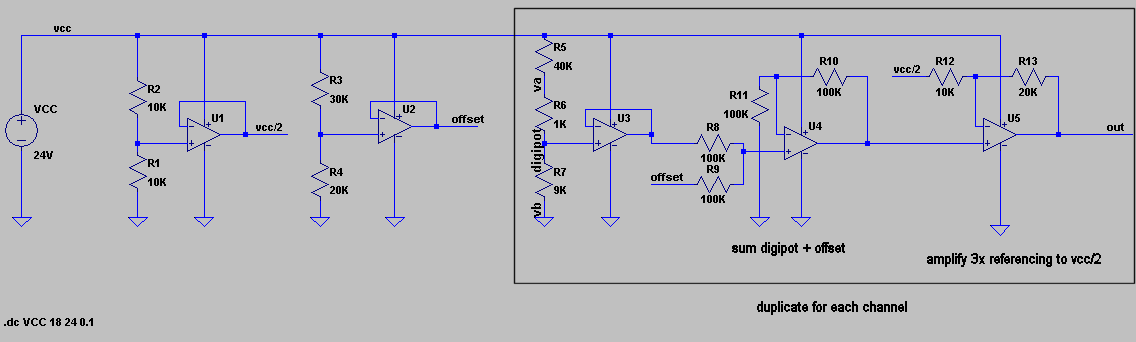

V2:

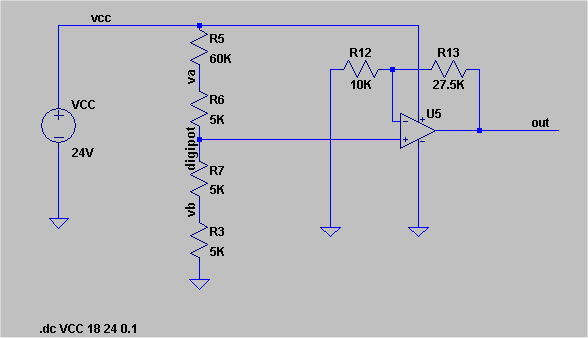

V3:
